Tapered and straight-wall implant systems, machined from grade 5 titanium alloy and finished with advanced Novitex® surface technology — engineered for primary stability, rapid osseointegration and predictable restorations.
Implant Systems

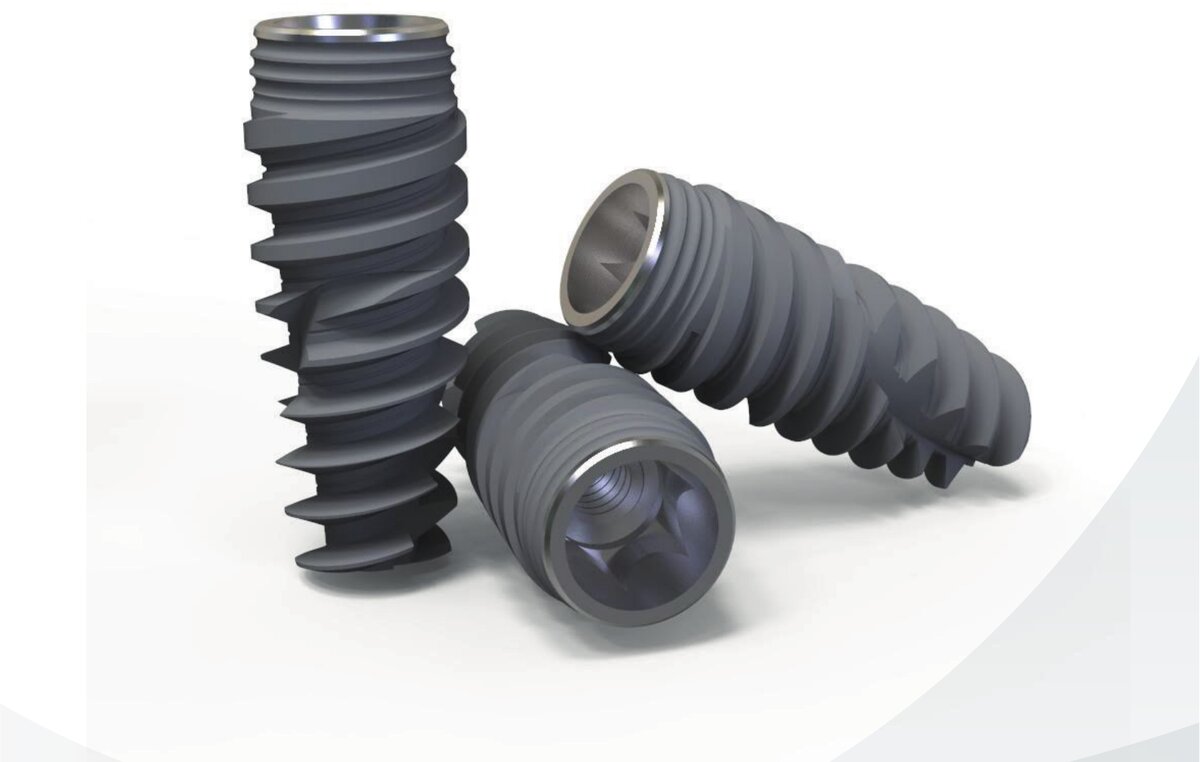

Every system we supply shares the same internal-hex Perfect Fit™ connection and grade 5 titanium body, so clinicians can choose the geometry the case calls for without changing prosthetic logic.

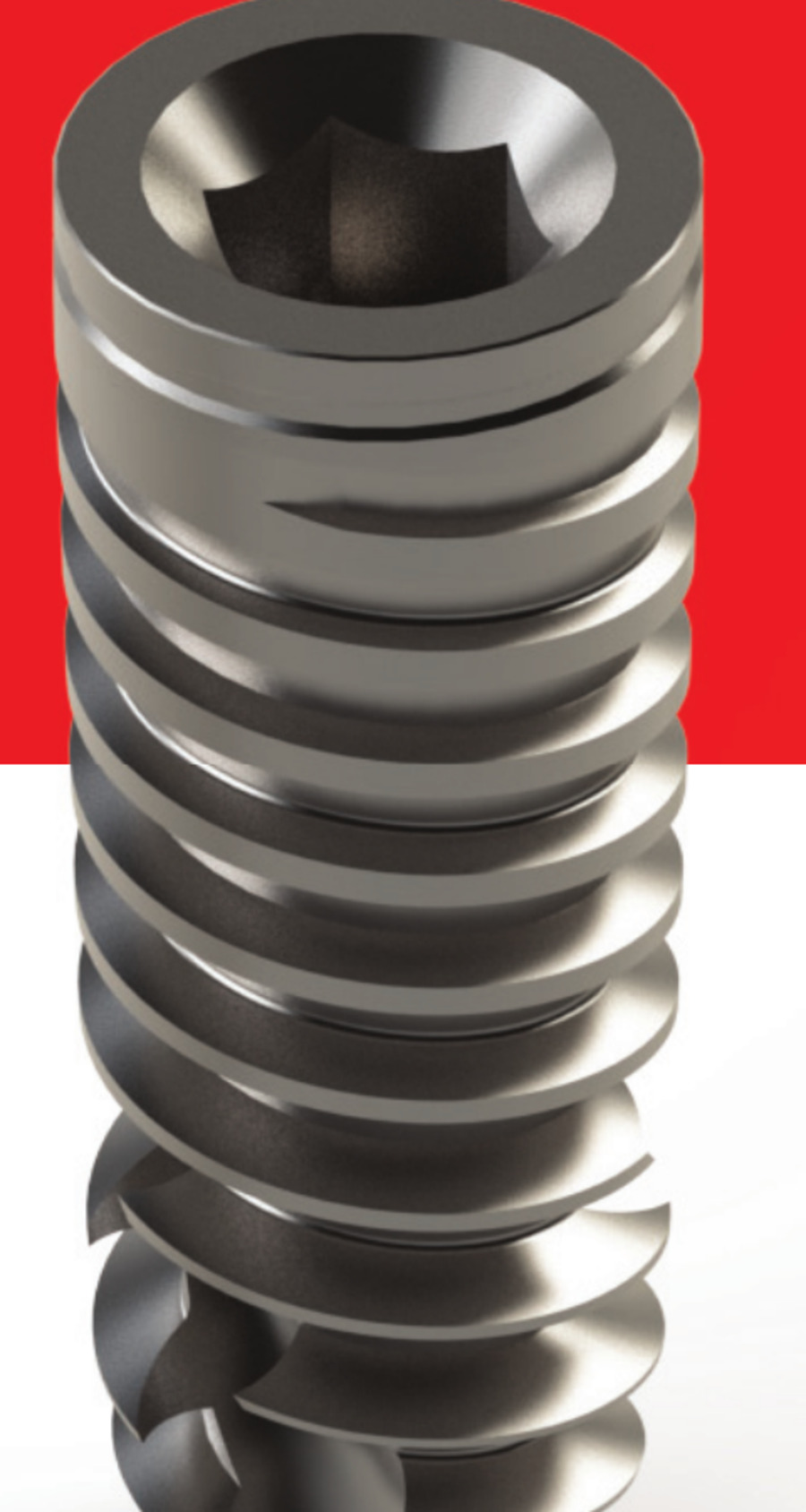

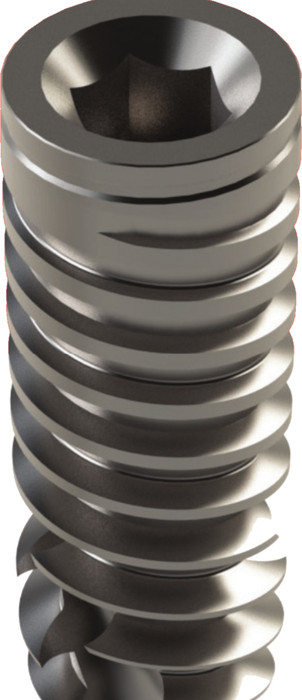

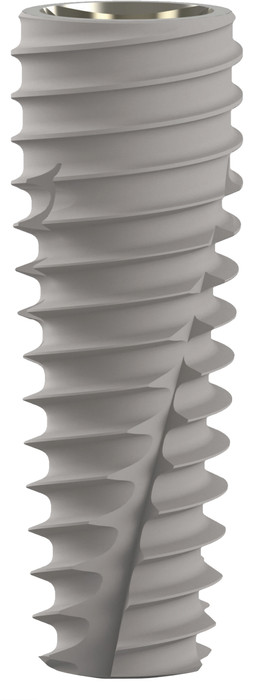

A tapered, internal-hex implant designed for easy insertion and excellent initial stability. Variable-pitch threads self-tap through a range of bone densities, and apical cutting flutes give immediate engagement in dense ridges.

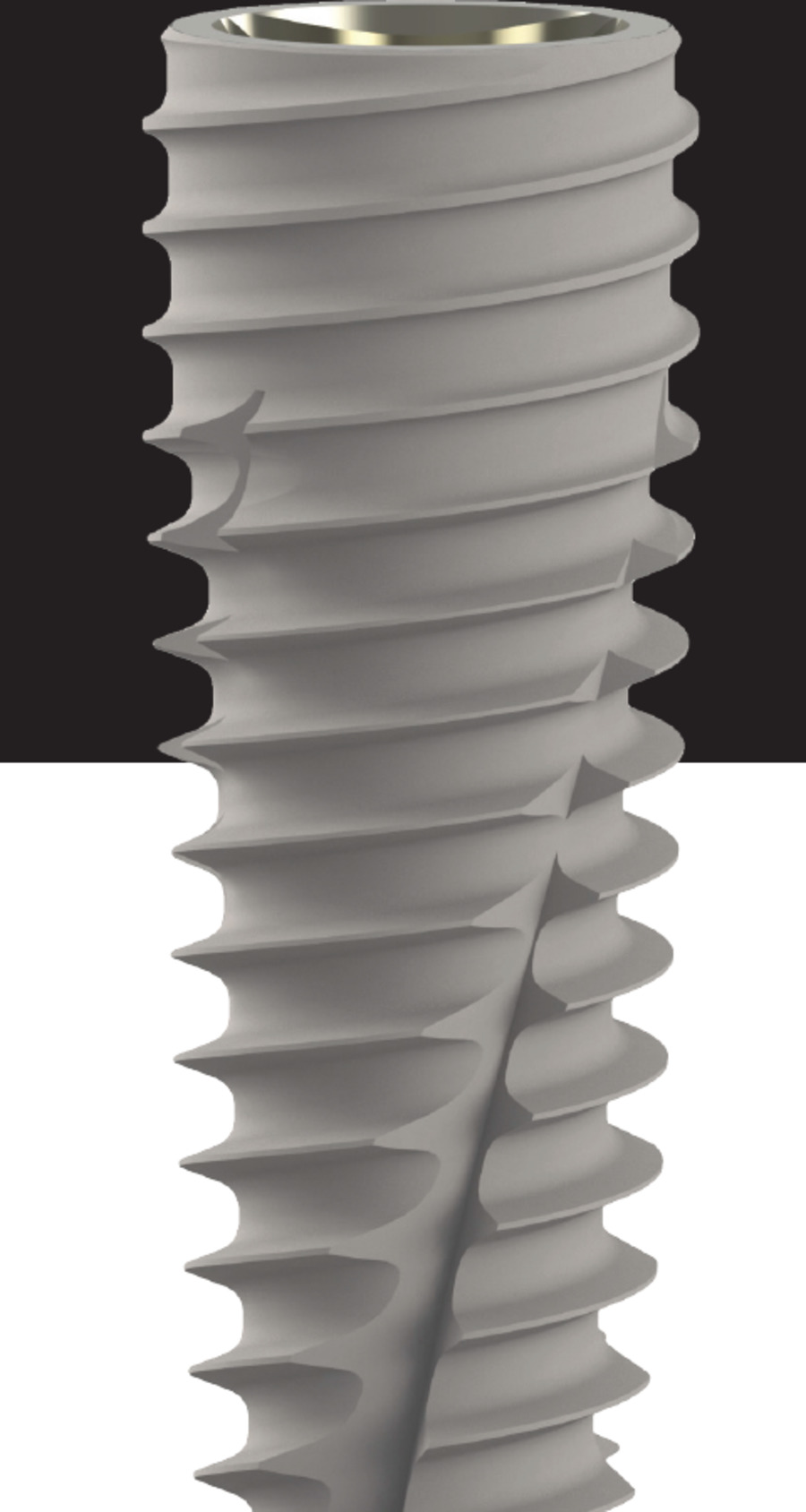

A straight-wall, 2.5 mm internal-hex implant for two-stage and single-stage procedures. Its wider thread geometry increases bone-to-implant contact area, and it's specifically suited to softer, type 1 bone.

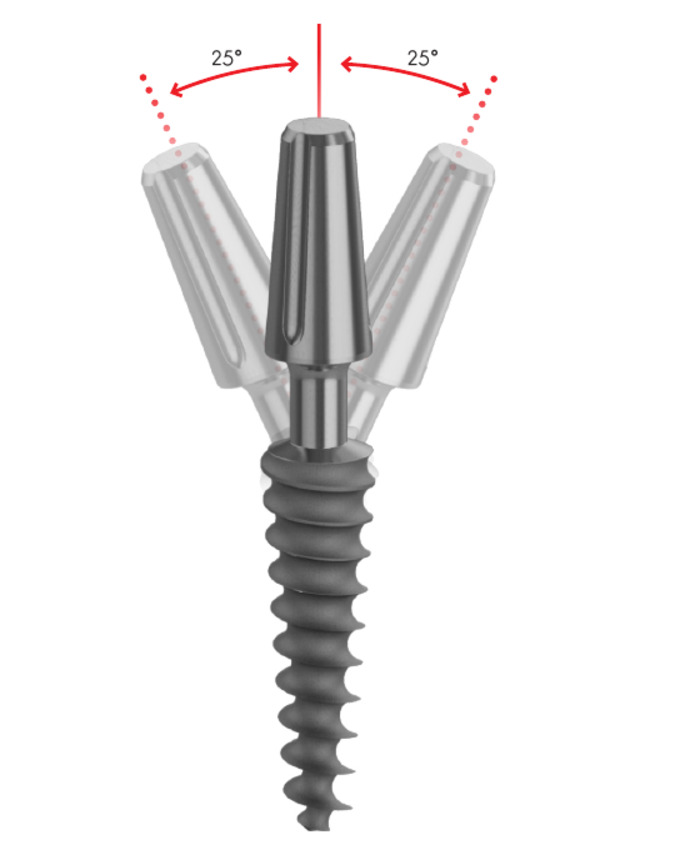

A one-piece compressive implant built for very narrow alveolar ridges — mainly maxillary lateral and mandibular incisors. Cleared for single-stage placement and cement restorations, with up to 25° of post-insertion bending tolerance.
Surface & Material Science
A microtextured surface developed to maximize bone-to-implant contact. Independent testing recorded greater than 98% BIC, compared with 45–69% typically reported for TPS-coated, sandblasted and acid-etched surfaces.
Combines the Nova Active Surface with a thin, rapidly resorbable calcium-phosphate (CaP) layer — releasing concentrated calcium and phosphate ions for faster bone ongrowth and earlier implant loading.
Where indicated, our hydroxyapatite coating reaches up to 98% crystallinity — reducing soluble phases and supporting higher reverse-torque values at 3 and 6 weeks versus standard hydrophilic surfaces.
A proprietary internal-hex, conical implant–abutment interface used across every system in this range, engineered for a consistent, low-tolerance seat between implant and prosthetic component.
Independent bench testing of a 4.2 × 10 mm implant compared insertion stability (ISQ-equivalent) against three competitor systems of matching dimensions.
Clinical Evidence
A retrospective comparative pilot study followed 39 patients restored with 161 implants over 24–48 months, comparing Nova bone-level implants — one of the systems we supply — restored with a progressive digital workflow against an established tissue-level protocol. Across both groups, researchers found no statistically significant differences in plaque index, bleeding on probing, peri-implant sulcus depth, gingival condition or marginal bone resorption. Patient satisfaction was uniformly high, and no implant failures or screw-loosening events occurred during follow-up.
This was an exploratory pilot study with a retrospective design and no randomization; the authors note it should not be interpreted as evidence of equivalence between protocols, and call for larger prospective studies.
Read the published study →Prosthetics & Digital Workflow
From healing abutments through definitive zirconia, every component shares the same Regular Platform connection — including scan bodies compatible with Sirona CEREC® and pre-milled titanium blanks for Arum, MegaGen, Amann Girrbach and Zirkonzahn systems.

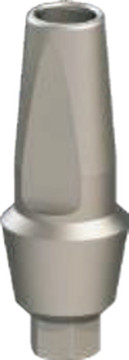

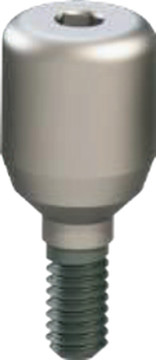

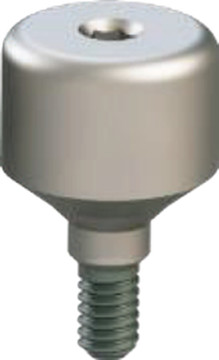

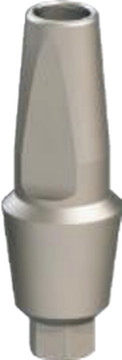

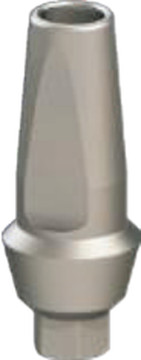

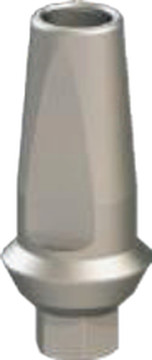

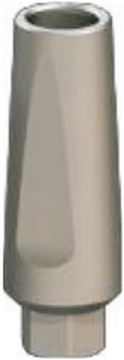

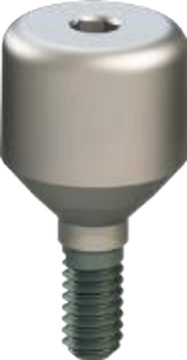

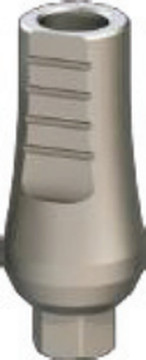

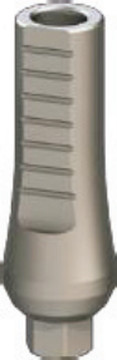

Titanium healing abutments plus straight, slim and shouldered abutments in graduated heights for staged soft-tissue conditioning.

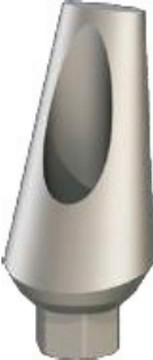

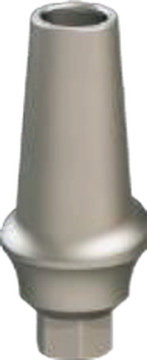

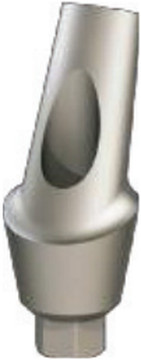

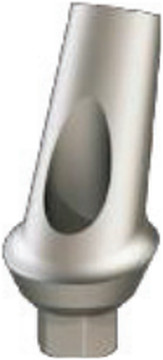

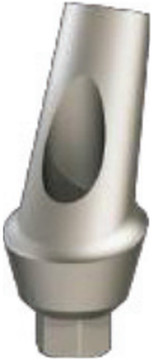

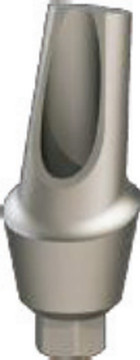

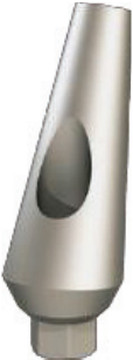

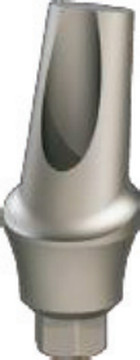

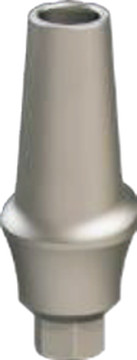

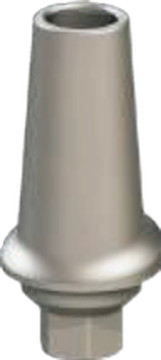

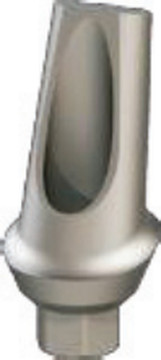

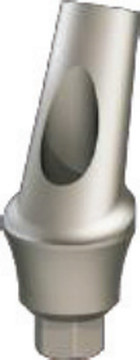

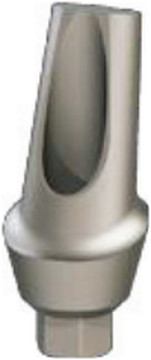

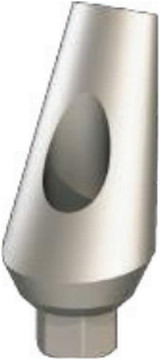

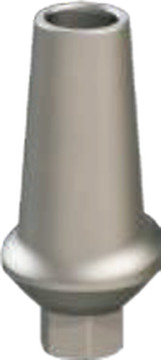

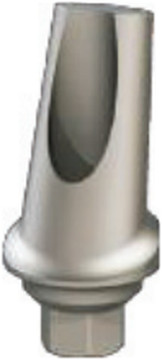

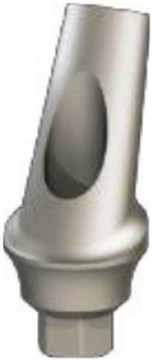

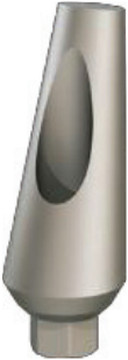

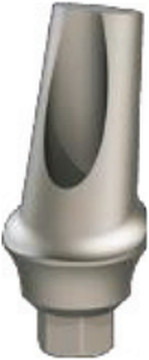

15°, 25°, 35° and 45° angulations, straight and concave anatomic profiles, in metal, PEEK and zirconia (Zircocam™ / Zircotec™).
Titanium bases, PEEK scan bodies and pre-milled blanks for chairside and lab CAD/CAM, plus a dedicated abutment gauge kit.

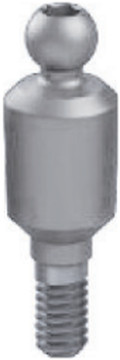

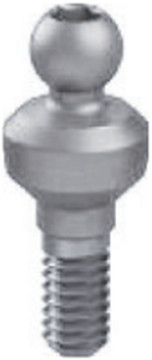

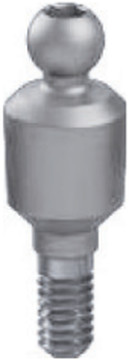

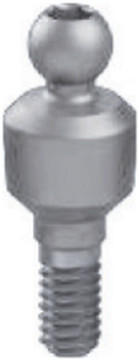

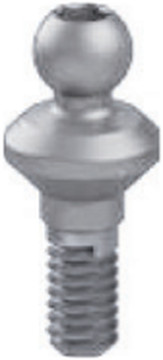

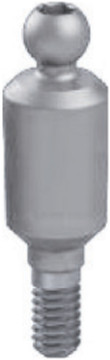

Ball attachments, angled Pop-Clicq™ abutments and the Multi Clicq™ bar system for a chairside-fitted permanent bar in 1–2 minutes.
Parts Catalog
85 catalog numbers across implants, healing abutments, straight abutments, angled abutments and ball attachments. Search by part number or size, filter by category, and select a part number to copy it for your order.
Showing all 85 parts
Tapered internal-hex implant. Ti-6Al-4V ELI with Nano Active Surface treatment.
| Ø D | Ø DI | Length and catalog number |
|---|---|---|
| 3.3 mm Red | 2.6 mm |
|
| 3.75 mm Blue | 3.1 mm |
|
| 4.2 mm Green | 3.5 mm |
|
| 5.0 mm Black | 4.5 mm |
|
| 6.0 mm Brown | 5.5 mm |
|
Straight-wall 2.5 mm internal-hex implant. Ti-6Al-4V ELI with Novit® surface.
| Ø D | Ø DI | Length and catalog number |
|---|---|---|
| 3.3 mm Red | 2.6 mm |
|
| 3.75 mm Blue | 3.1 mm |
|
| 4.2 mm Green | 3.5 mm |
|
| 5.0 mm Black | 4.5 mm |
|
| 6.0 mm Brown | 5.5 mm |
|
H 5 mmØ 4.6 mm
H 5 mmØ 5.5 mm
H 5 mmØ 6.3 mm
H 9 mm
H 12 mm
H 9 mm
H 1 mm
H 2 mm
H 3 mm
H 4 mm
H 1 mmL 9.4 mm
H 1 mmL 9.4 mm
H 2 mmL 10.4 mm
H 3 mmL 11.4 mm
H 9 mm
H 11.5 mm
H 9 mm
H 11.5 mm
H 1 mmL 9.4 mm
H 2 mmL 10.4 mm
H 3 mmL 11.4 mm
H 1 mmL 9.4 mm
H 2 mmL 10.4 mm
H 3 mmL 11.4 mm
H 1 mmL 9.4 mm
H 2 mmL 10.4 mm
H 3 mmL 11.4 mm
H 2 mmL 10.4 mm
H 3 mmL 11.4 mm
H 1 mm
H 2 mm
H 3 mm
H 4 mm
H 5 mm
H 6 mm
Transparent
Metal housing
No parts match .
Check the part number, try a shorter search, or .
Dimensions are in millimetres: H is height, L is length and Ø is diameter, as labelled in the manufacturer’s catalog. Need a size or part that isn’t listed? Contact us →
Manufacturing & Packaging
Every implant is supplied in a sterile double pack — an inner vial holding the pre-mounted implant and cover screw, sealed inside a tamper-evident outer blister. Irradiation-sterilized and validated for single use only, with lot number, catalogue number, expiry and CE marking printed on every pack.
Request the current product catalog, size charts, or speak with our team about surgical kits and digital workflow compatibility.
